Go time! Revamp the steering on your Ford with Unisteer’s bolt in rack & pinion system for a superior steering experience! Similar to the earlier Ford Full Size cars but a little different, this kit is engineered specifically to match the stock suspension of these Fords! Sorry it will not work on Trucks.
This is a rear steer center take-off style rack and pinion with a ball center bar that exactly matches the center link of the stock suspension for the '60-'64 Fords. The rack & pinion comes mounted to a one piece mounting bracket that bolts up to the frame using the same holes that held up the steering box and idler arm.
This is designed to be used with Traditional FE Motors found in these cars, including the 332, and 352. This kit has been installed on vehicles with stock manifolds. Other Headers may work but might require modification or another u-joint in the column linkage.
Click to view instruction sheet
Tech Info:
Pinion Type/Size: 17mm DD
Amount of Travel: 6"
Turns Lock to Lock: 2.5 - 2.75 Turns
Pressure Port Size: 18mm - 6AN Banjo
Return Port Size: 16mm - 6AN Banjo
Pump Required: Low Flow / Pressure
Inner End Threads: 9/16"-18
Outer ends: Included

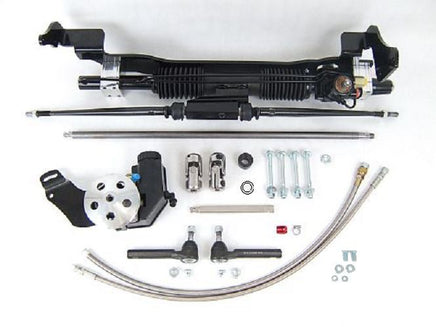

Kit Includes:
Rack and Pinion
Mounting Bracket
Mounting Hardware
Outer Tie Rod Ends
Pump and Line Kit
Steering Shaft Kit
