Bring the Tiger out in your GTO! Bolt in a Unisteer Rack & Pinion Kit and feel that beast ROAR through the turns! Installation is
easy – the benefits are AWESOME!

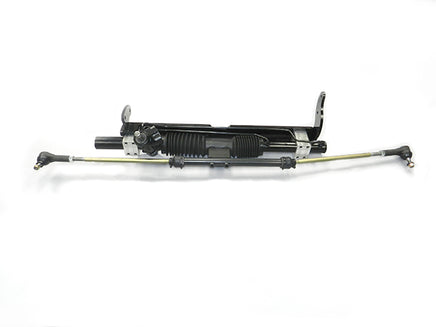

This kit was specifically designed to fit the Pontiac GTO / Tempest / Lemans. This is a front steer center take-off style Rack & Pinion mounted on a 5/16" plate bracket that bolts in to the same mounting holes used for the factory steering box and idler arm. The rack matches the stock suspension on these cars, replacing the original center link. The kit will clear Z-Bar and 4 Speed Linkage. It will also clear stock manifolds, or Hooker Competition Headers. Other Headers may work but might require modifications.
Note: Some aftermarket heads may have raised exhaust floors and may change your header height causing steering shaft interference, which may need modification.
Tech Info:
Pinion Type/Size: 3/4"-36 Spline
Amount of Travel: 7"
Turns Lock to Lock: 3 Turns
Pressure Port Size: 18mm - 6 AN Banjo
Return Port Size: 16mm - 8 AN Banjo
Pump Required: High Flow / Pressure
Inner End Threads: M14 x 1.5
Outer ends: 8020940
Kit Includes:
Rack and Pinion
Mounting Bracket
Mounting Hardware
Outer Tie Rod Ends
