It’s about time that Cougar drive as good as it looks! Take your pick with either of Unisteer’s Power or Manual Rack & Pinion Kits.
The Cougar Rack kit eliminates slop and greatly improves the steering and handling of your vehicle. This rack is a center take-off style rack and pinion that utilizes an offset ball center bar which duplicates the stock center link; this means that the rack matches the exact geometry of the original front suspension.
The rack comes mounted to a one piece mounting bracket which replaces the tubular cross member located directly behind the front suspension. Since the racks are center take-off style, we offset the rack on the mounting bracket moving the pinions closer to the driver-side frame, which makes connection of the steering linkage to the column as easy as possible. The set up will clear 4-speed linkage, and Z-Bar. This kit will require the use of a mini starter.
This kit will work with both a big block and small block cars, and has been successfully used with Stock Manifolds and Hooker Super Competition Headers. The rack may require modifications on vehicles with Dart Heads, or other Aftermarket Heads.
Note: Please use the drop down menus above to help us provide the proper components for your build.
Click to view instruction sheet
Tech Info:
Pinion Type/Size: 17mm DD
Amount of Travel: 6"
Turns Lock to Lock: 2.5-2.75 Turns
Pressure Port Size: 18mm Banjo - 6 AN
Return Port Size: 16mm Banjo - 6 AN
Pump Required: Low Flow / Pressure
Inner End Threads: 11/16" - 18 Female Tubes

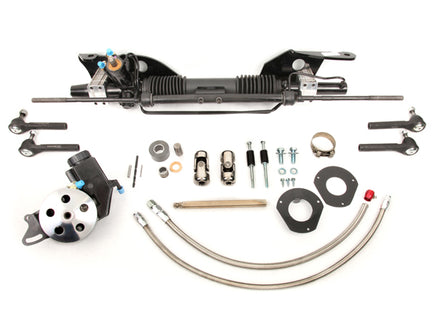

Kit Includes:
Rack and Pinion
Mounting Bracket
Mounting Hardware
Pump and Line Kit
Steering Shaft Kit
