Give your Trans-Am a steering upgrade! You may not be able to really see when its sitting on the lot, but you’ll feel it on the road! Try our bolt in Power Rack & Pinion kit for your Firebird or Trans-Am and completely improve your steering and handling.

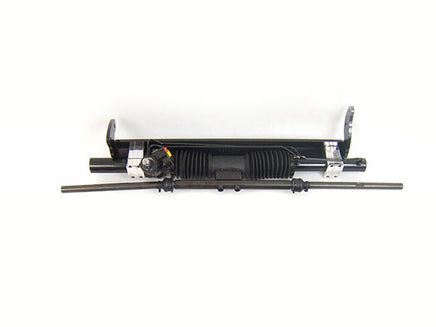

For this Pontiac kit we used a front steer, center take-off style rack and pinion made to match the original center-link of these cars. The rack and pinion match the stock front suspension for great handling, responsiveness, and no bump steer! The rack comes mounted to a one piece bracket which bolts up to the same factory holes on the frame that held the steering box and idler arm.
We did our first install on a 455, and we used Dynomax Headers (Their Part #86104). Other headers may work, but might require modifications.
Tech Info:
Pinion Type/Size: 3/4"-36 Spline
Amount of Travel: 6.75"
Turns Lock to Lock: 3 Turns
Pressure Port Size: 18mm - 6 AN Banjo (lower)
Return Port Size: 16mm - 6 AN Banjo (upper)
Pump Required: High Flow / Pressure
Inner End Threads: 11/16"-18 Female
Outer ends: Reuse Originals
Kit Includes:
Rack and Pinion
Mounting Bracket
Mounting Hardware
