Unisteer Performance has a full line of U-Joints to match your steering needs. Our Performance Joints are all made with top quality needle bearings which allow minimal lash and a great working angle; up to 38 degrees! The polished stainless finish resists the elements and keeps that eye-popping appearance. Each joint is labeled with what each yoke has; if it is a splined application, the first number is the size either in standard or metric followed by a second number which indicates the number of splined teeth there are. If you cannot find your application, please measure it and count the teeth, or give us a call.

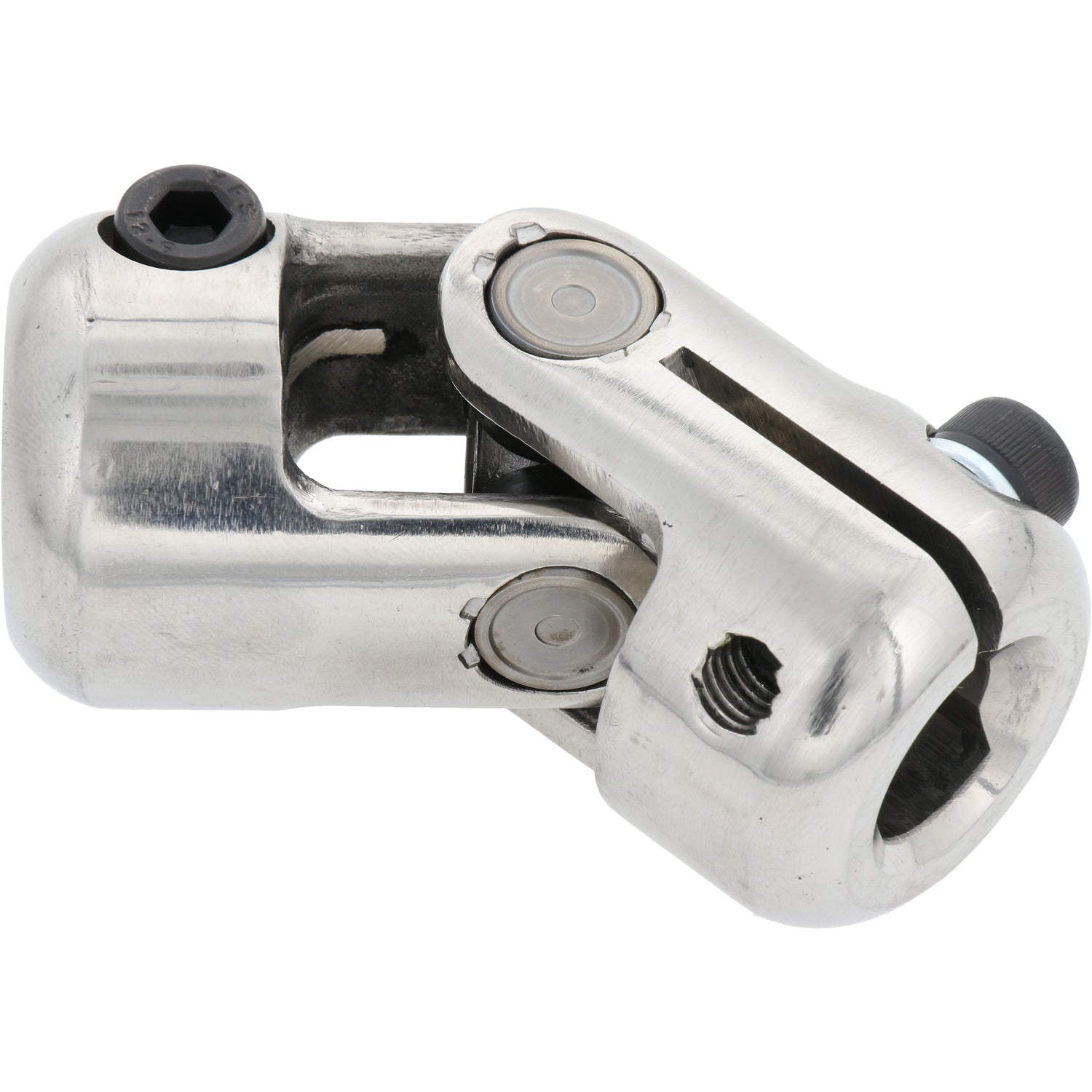

This specific U-Joint's size is 9/16" 26 Count Spline by 3/4"DD. That size of spline works with UniSteer's Cross Steer Rack & Pinion, Prostock Rack, and Manual Camaro Rack & Pinion. This size spline is also the size of manual Mustang Style Rack & Pinions. This U-Joint uses the pinch bolt fastener style on both sides.
Note: Torque U-Joint to 45ft. lbs. May need to repeat 1-2 times.
